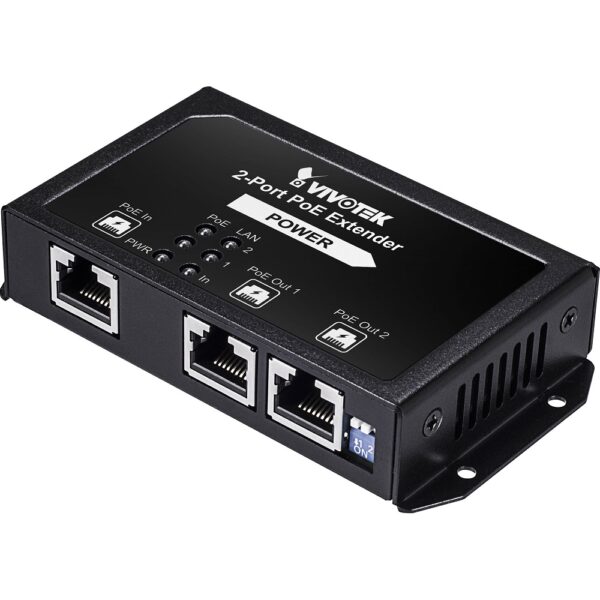

VIVOTEK Indoor 2-Port FE PoE Extender (AP-FXC-0210)

Model
AP-FXC-0210

Compatible Camera List
VIVOTEK Network Cameras

Power Specifications
Extension Distance

2 Units, Daisy-chain Installation up to 300M Extension
(No Local Power Required)

PoE Input Power
95W/60W/30W PoE

PoE Output Power
48~55VDC, Max. 70W

PD Power Pin Assignment
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)

PSE Power Pin Assignment
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)

PD Fast Ethernet (RJ45)
1

PSE Fast Ethernet (RJ45)
2

PSE Power On/Off Dip Switch
Supported

Networking Specifications

Total Fast Ethernet Port
3

Mac Table
2K

Bandwidth
Max. 100 Mbps

Switching Capacity
1 Gbps

Auto-MDI/MDI-X, Auto-Negotiation
Supported

Mechanical Specifications

Dimensions (W x H x D)
108 x 58 x 22 mm

Weight
0.19 kg

LED Indicators
Power, LAN, PoE

Environmental Specifications

Operating Temperature
0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature
-20°C ~ 70°C (-4°F ~ 158°F)

Operating Humidity
10 ~ 90% (non-condensing)

Certifications
EMC
CE, FCC, VCCI, C-Tick

Safety
EN60950-1, IEC60950-1
