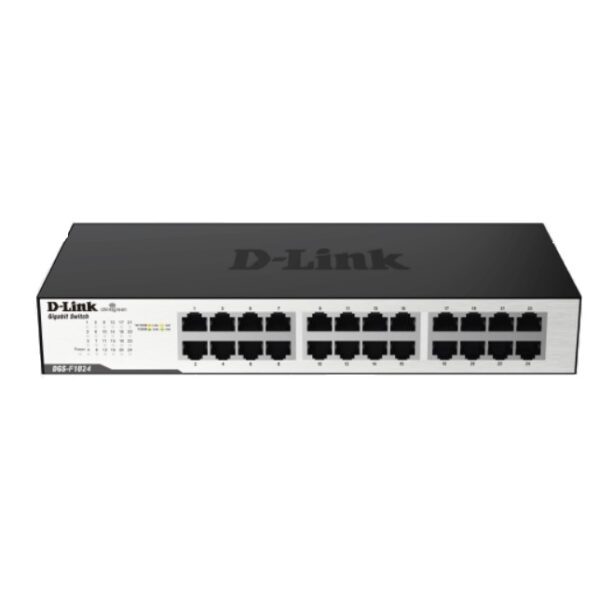

D-Link 24-Port Gigabit Unmanaged Switch (DGS-F1024)

SKU: DGS-F1024

R4,099.00 Incl. VAT

Out of stock

Want to be notified when this product is back in stock?

Specifications

D-Link 24-Port Gigabit Unmanaged Switch (DGS-F1024) – Device Interfaces: 24 x 10/100/1000 Mbps LAN ports, Switching Capacity: 48 Gbps, Data Transfer Rates: Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex), Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex), Gigabit Ethernet: 2000 Mbps (full-duplex), RAM Buffer: 512 KB per device, Power Input: 12 V / 1 A, Power Consumption: Standby: 4.1W, Maximum: 14.5W

What's in the Box

D-Link 24-Port Gigabit Unmanaged Switch (DGS-F1024), Documentation

Specifications

1000Base-T Interface
24

Auto MDI/MDIX
Yes

Switching Capacity
48Gbps

Max. Packet Forwarding Rate
35.712 Mpps

Store & Forwarding Forwading
Yes

Dimension
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)

Weight
1.14 kgs

Operation Temperature
0 ~ 40 Ā°C

Storage Temperature
- 40 ~ 70 Ā°C

Operation Humidity
10% ~ 90% RH

Maximum Power Consumption
13.5 watts

Standby Power Consumption
6.5 watts

Maximum Heat Dissipation
46.035 BTU/h

MTBF
247,291 hours

Power Input
ACļ¼š100 ~ 240 V

Packet Buffer Size
512KBytes

FAN
Fanless

Comply with RoHS 6
Yes

Energy Efficiency Ethernet (EEE)
Yes

Power Saving By Link Status
Yes

Power Saving By Cable Length
Yes

MAC Address Table Size
16000

802.3x Flow Control
Yes

Head-of-line (HOL) Blocking Prevention
Yes

Jumbo Frame
9,216 Bytes

Switch intelligence
Unmanaged

Port count
1000Base-T Interface x 24,120G CXP Interface

120G CXP Interface
Yes

Storage Humidity
5% ~ 95% RH

Acoustic
0 dB

1000Base-T Interface
24

120G CXP Interface
Yes

Auto MDI/MDIX
Yes

Switching Capacity
48Gbps

Max. Packet Forwarding Rate
35.712 Mpps

Store & Forwarding Forwarding
Yes

Dimension
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)

Weight
1.14 kgs

Operation Temperature
0 ~ 40 Ā°C

Storage Temperature
- 40 ~ 70 Ā°C

Storage Humidity
5% ~ 95% RH

Operation Humidity
10% ~ 90% RH

Maximum Power Consumption
13.5 watts

Standby Power Consumption
6.5 watts

Maximum Heat Dissipation
46.035 BTU/h

Acoustic
0 dB

MTBF
247,291 hours

Power Input
AC 100V-240V

Packet Buffer Size
512KBytes

FAN
Fanless

Comply with RoHS 6
Yes

Energy Efficiency Ethernet (EEE)
Yes

Power Saving By Link Status
Yes

Power Saving By Cable Length
Yes

MAC Address Table Size
16000

802.3x Flow Control
Yes

Head-of-line (HOL) Blocking Prevention
Yes

Jumbo Frame
9,216 Bytes
